Graph theory · formal theorem

König’s Edge-Coloring Theorem

Every finite bipartite simple graph admits a proper edge coloring using its maximum degree many colors.

Scope: Every finite bipartite simple graph admits a proper edge coloring with its maximum degree many colors.

Lean checkedBuild passed
Unfinished proof stepsNone
PublicationAccepted formal theorem
König edge-coloring statement mapThe edges of a finite bipartite simple graph split into maximum-degree many matchings, which serve as color classes.
Exact scope: Every finite bipartite simple graph admits a proper edge coloring with its maximum degree many colors.

Exact formal proposition

Hypotheses and conclusion

theorem konigEdgeColoringTheorem : KonigEdgeColoringStatement

Proof route

How matchings peel a bipartite graph into colors

5 proof stages

The checked proof obtains an injective adjacent selector on maximum-degree vertices, turns its finite path components into a matching that covers every such vertex, deletes that matching to lower the maximum degree, and colors recursively before assigning one fresh color.

These stages follow the checked source and explain the mathematical route. They summarize the argument; they are not a visualization of Lean's internal proof term.

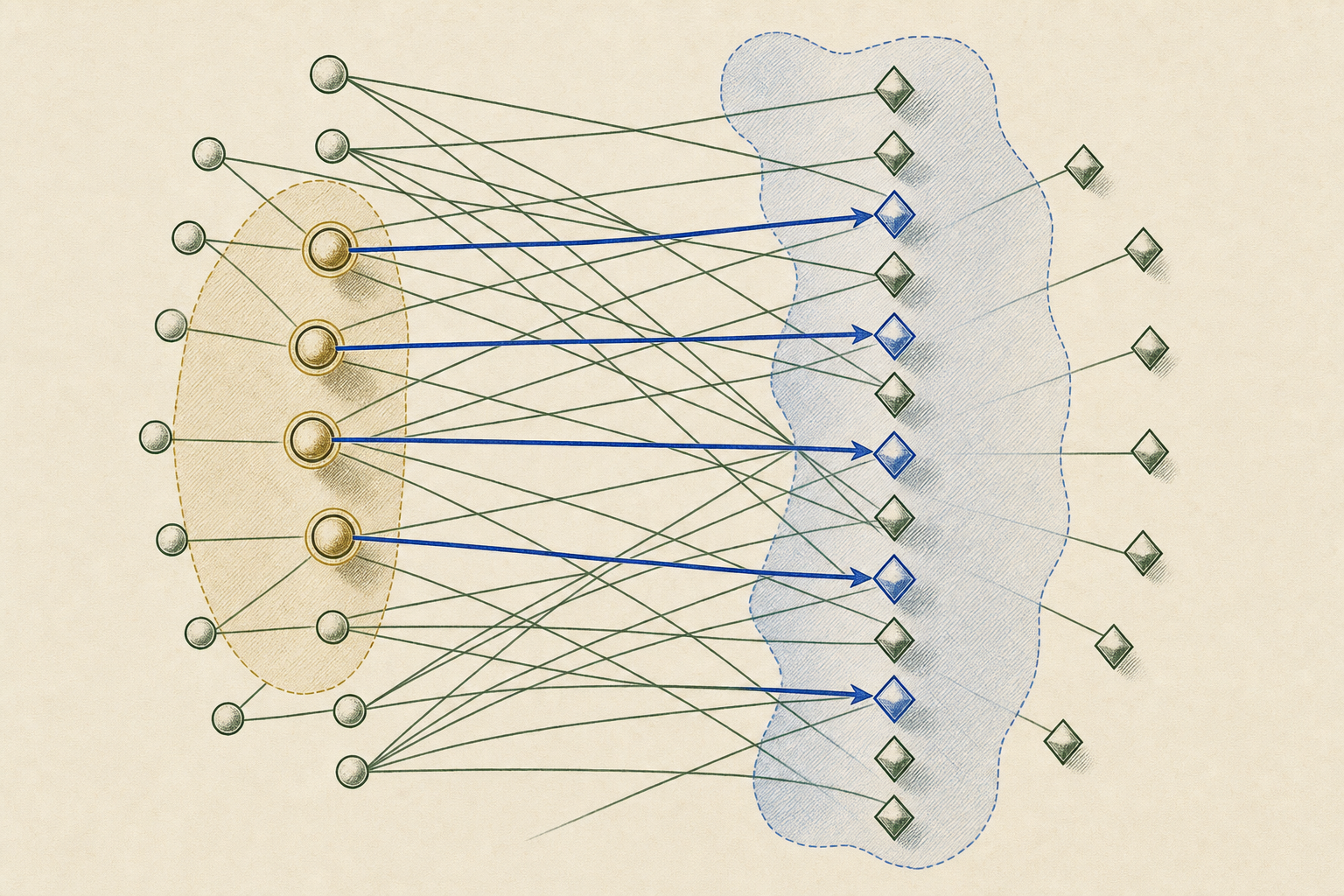

  1. Scientific figure illustrating: Neighborhood counting supplies distinct adjacent targets for all maximum-degree vertices.
    Neighborhood counting supplies distinct adjacent targets for all maximum-degree vertices.
    01

    Hall counting gives an injective neighbor selector

    |S| ≤ |N(S)| ⇒ injective selector

    For every finite set of maximum-degree vertices, degree counting gives at least as many available neighbors. The resulting Hall inequalities produce one injective adjacent selector on the full maximum-degree set.

    Lean lemmas for this step
    • card_le_card_biUnion_neighborFinset_of_forall_degree_eq_maxDegree
    • exists_injective_neighbor_of_maxDegree_vertices

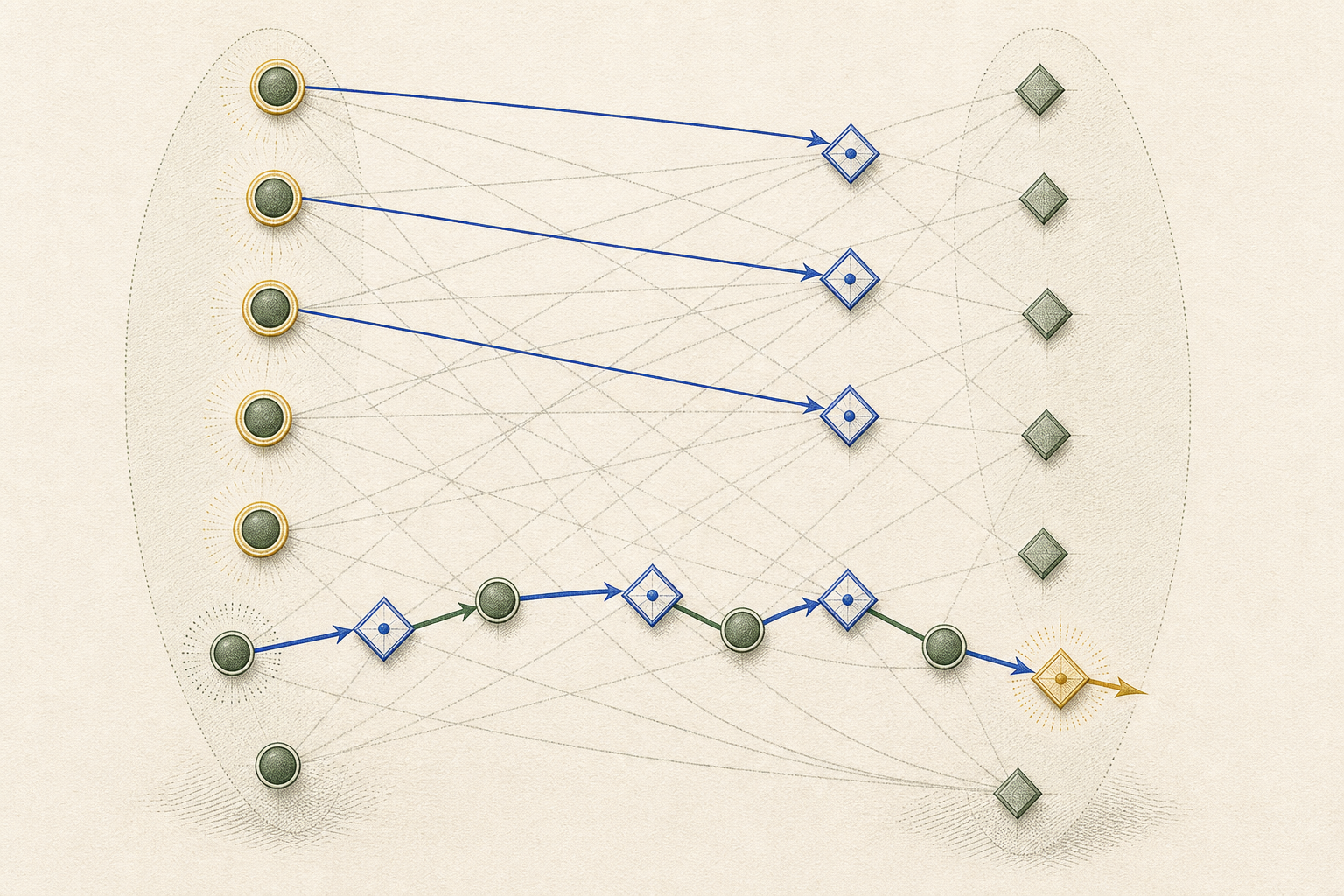

  2. Scientific figure illustrating: Injectivity and finiteness turn an unhit source into a path ending outside the source set.
    Injectivity and finiteness turn an unhit source into a path ending outside the source set.
    02

    Follow a selector path to its first exit

    unhit source → finite selector path → first exit

    When the selector range is not contained in the maximum-degree set, start at a source that is not selected by any other source and iterate the selector. No vertex repeats before the first exit, and alternating path edges begin the covering matching.

    Lean lemmas for this step
    • exists_unselected_source_of_not_range_subset
    • selector_path_ne_of_lt
    • exists_first_iterate_exit_of_unselected
    • exists_isMatching_cover_of_selector_path

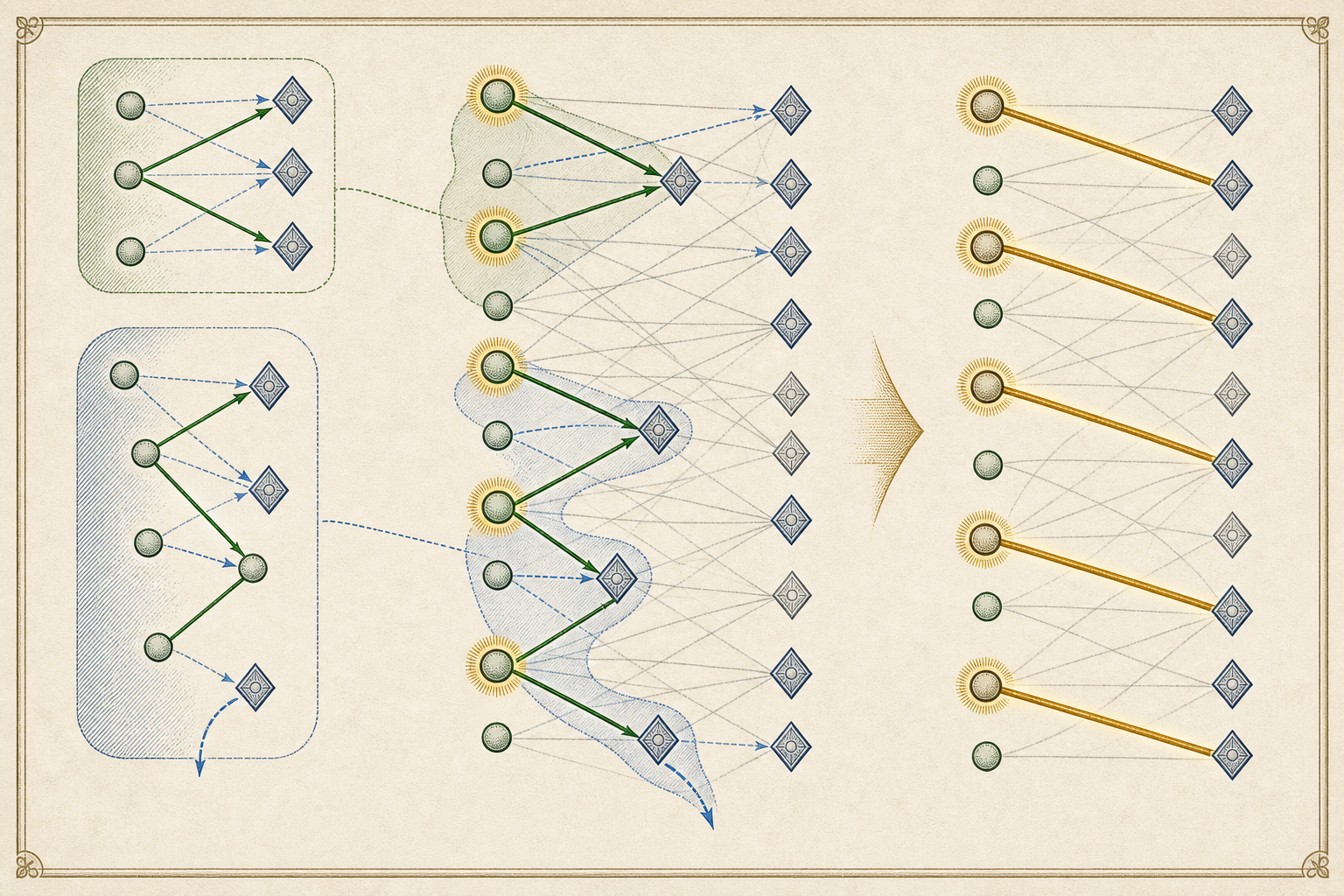

  3. Scientific figure illustrating: Finite selector paths and components choose compatible edges that cover the required vertices without collisions.
    Finite selector paths and components choose compatible edges that cover the required vertices without collisions.
    03

    Resolve selector components into a matching

    selector components ⇒ covering matching

    Following selector arrows in the finite bipartite graph produces paths and cycles. Choosing alternating edges component by component removes selector collisions and yields one matching covering all maximum-degree vertices.

    Lean lemmas for this step
    • selector_path_ne_of_lt
    • exists_isMatching_cover_of_selector_path
    • exists_isMatching_cover_subset_of_injective_neighbor
    • exists_isMatching_cover_maxDegree_vertices_of_bipartite

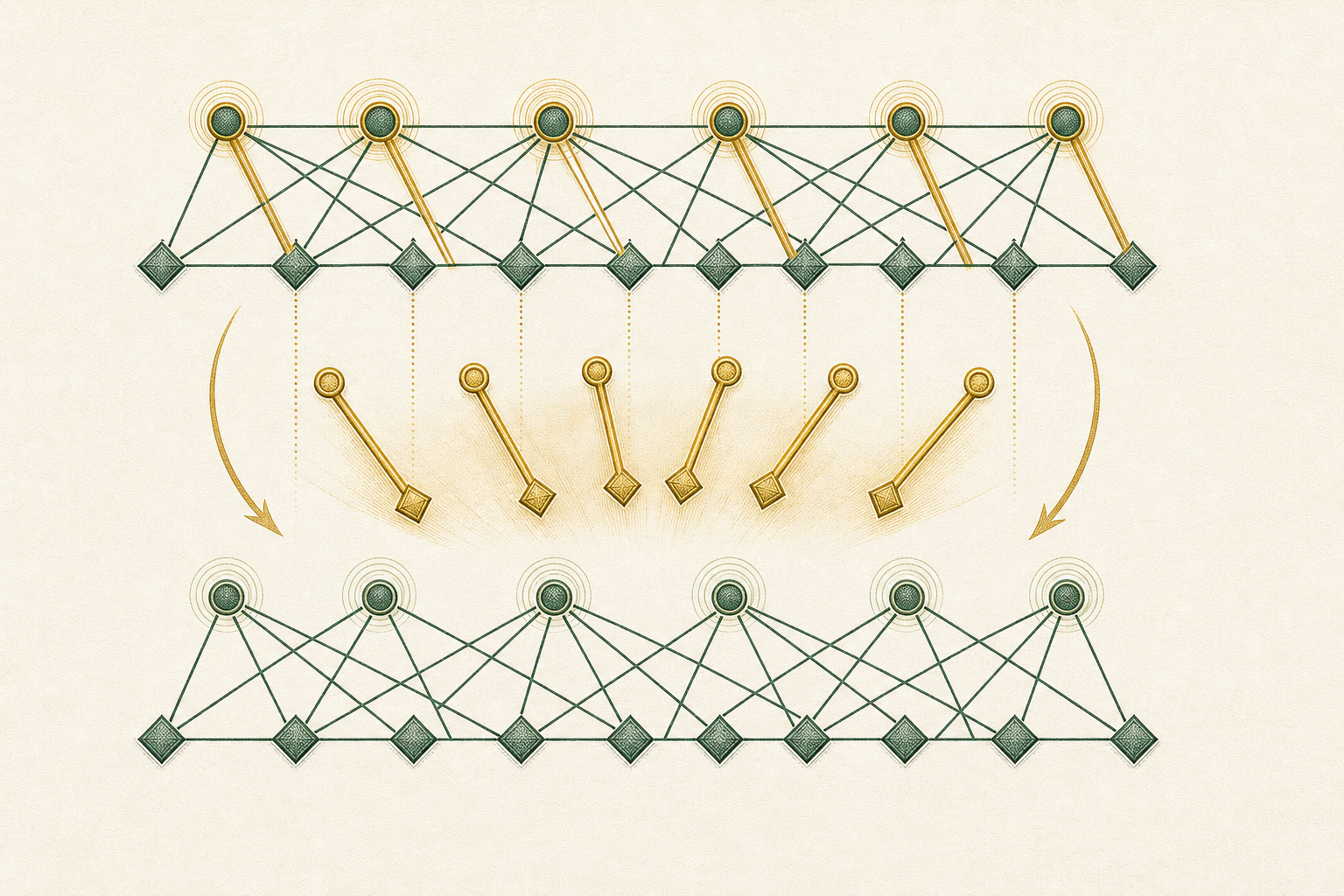

  4. Scientific figure illustrating: Deleting the matching removes one edge at every maximum-degree vertex and cannot increase any other degree.
    Deleting the matching removes one edge at every maximum-degree vertex and cannot increase any other degree.
    04

    Delete the covering matching

    Δ(G ∖ M) ≤ Δ(G)−1

    Every former maximum-degree vertex loses an incident edge, while all other vertices had degree below Δ already. The remainder is bipartite and has maximum degree at most Δ−1.

    Lean lemmas for this step
    • edgeColorable_of_isMatching_sdiff
    • degree_sdiff_of_le
    • maxDegree_sdiff_spanningCoe_le_pred_of_isMatching_cover
    • isBipartiteWith_sdiff
  5. Three bipartite graph states use the same three circular left vertices and three diamond right vertices. A cobalt solid and emerald dashed remainder sits above an antique-gold dot-dash matching; their final union gives every vertex exactly one incident edge of each style.
    A proper two-color remainder gains one fresh matching color; every final vertex is incident to one edge in each distinct style.
    05

    Restore one fresh matching color

    (Δ−1) colors + 1 matching color = Δ colors

    The upper-left state colors six remainder edges as two perfect matchings: cobalt solid edges pair corresponding rows, while emerald long-dash edges cycle to the next right-bank row. The lower-left state contains the deleted matching alone as three antique-gold dot-dash edges cycling to the remaining row. The right state combines all nine edges on the same three-by-three bipartite vertex set. Each color-and-rhythm class is a matching, and every final vertex meets exactly one cobalt, one emerald, and one gold edge, so incident colors are pairwise distinct. The finite graph is an explanatory example; the exact general theorem remains in HTML.

    Lean lemmas for this step
    • konigEdgeColoringTheorem_of_matching_cover
    • edgeColorable_of_isMatching_sdiff
    • ProperEdgeColoring
    • konigEdgeColoringTheorem

The theorem at a glance

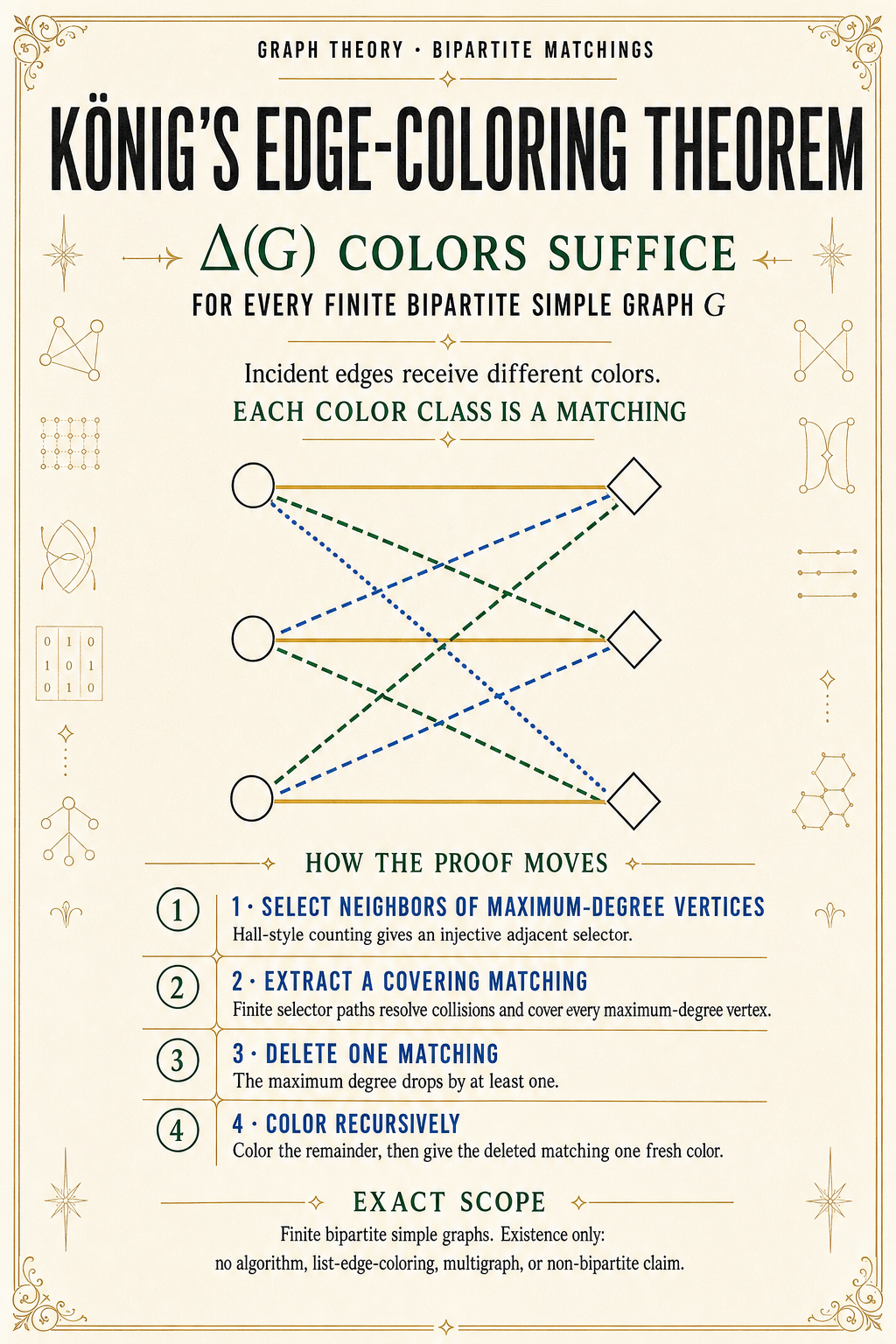

König’s edge-coloring theorem at a glance

Editorial graph-theory poster explaining why Delta colors suffice for every finite bipartite simple graph through matching extraction and induction.
A matching covering every maximum-degree vertex can be removed to lower Δ and supply one color class.

Accessible transcript

finite bipartite G ⇒ proper edge coloring with Δ(G) colors

Hall-style counting produces an injective adjacent selector on maximum-degree vertices. Finite selector paths yield a covering matching; deleting it lowers the maximum degree, after which induction colors the remainder and one fresh color restores the matching.

Read the complete poster transcript

GRAPH THEORY · BIPARTITE MATCHINGS

KÖNIG’S EDGE-COLORING THEOREM

Δ(G) COLORS SUFFICE

FOR EVERY FINITE BIPARTITE SIMPLE GRAPH G

Incident edges receive different colors.

EACH COLOR CLASS IS A MATCHING

HOW THE PROOF MOVES

1 · SELECT NEIGHBORS OF MAXIMUM-DEGREE VERTICES

Hall-style counting gives an injective adjacent selector.

2 · EXTRACT A COVERING MATCHING

Finite selector paths resolve collisions and cover every maximum-degree vertex.

3 · DELETE ONE MATCHING

The maximum degree drops by at least one.

4 · COLOR RECURSIVELY

Color the remainder, then give the deleted matching one fresh color.

EXACT SCOPE

Finite bipartite simple graphs. Existence only:

no algorithm, list-edge-coloring, multigraph, or non-bipartite claim.

Theorem schematic

Color bipartite edges with Δ colors

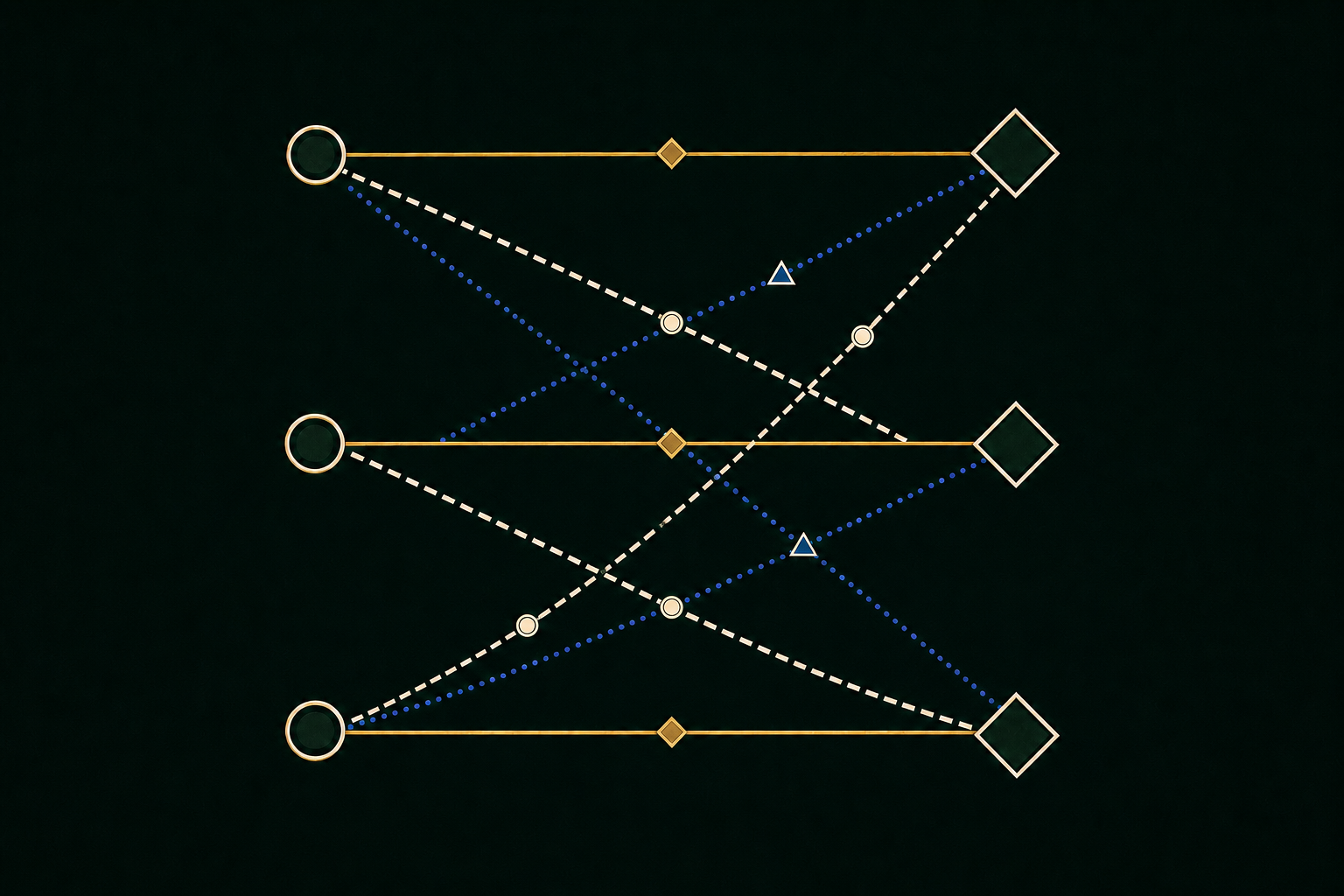

Scientific figure illustrating: Every finite bipartite simple graph has a proper edge coloring using at most its maximum degree Δ colors.
Every finite bipartite simple graph has a proper edge coloring using at most its maximum degree Δ colors.

χ′(G) ≤ Δ(G) for finite bipartite simple G

König’s edge-coloring theorem decomposes the edge set of a finite bipartite simple graph into at most Δ matchings, which serve as the color classes.

Result boundary

What this theorem does—and does not—establish

Every finite bipartite simple graph admits a proper edge coloring with its maximum degree many colors.

About these visual explanations

These AI-generated visuals explain the theorem and proof route; they are not proof evidence. Their publication review was completed separately from review of the formal result. The exact Lean proposition and checked source remain authoritative.

Line counts exclude blank lines; comments and documentation count. The total is the commit-pinned first-party Lean import closure; Mathlib and other third-party dependencies are excluded.

Continue the mathematics

Open questions and extensions

The pinned theorem and its complete local import closure let people and AI agents inspect the proof, compare another route, isolate reusable lemmas, or formulate a stronger exact statement. Lean checks each proposed extension against its own exact statement.

What the source ZIP contains

The ZIP contains the checked first-party Lean import closure, exact statements and boundaries, license, notice, evidence, source-footprint manifest, and continuation data. Mathlib and other third-party dependencies are not bundled.

Publication review

Review record

Publication reviews accepted

Lean checks the exact proof. Accepted review records cover evidence completeness, statement alignment, scope, and public wording; the visual review covers explanation only.

01

Formal evidence

The formal-evidence review accepted the recorded build, exact declarations, unfinished-step scan, and axiom evidence.

02

Statement alignment

The formal declaration was accepted against the named theorem and its exact variant.

03

Result boundary

The accepted boundary keeps nearby stronger or commonly confused claims out of scope.

04

Public wording

The public-wording review accepted the retained theorem explanation and source presentation. Generated media follows a separate review and promotion gate.

05

Canonical source

The first-party source link is pinned to the checked package commit and exact Lean file.

06

Accepted result

A validated accepted-result record binds the four reviews to the checked formalization.
